Nanobubbles in Lake and Pond treatment
Nanobubble (NB) aeration is an emerging technology for ponds and lakes that generates microscopic, long-lasting bubbles (<1 µm) to diffuse oxygen and other gases throughout the water column. Studies and installations indicate that NB systems can greatly improve oxygen transfer and water quality. For example, Nanokriti’s pilots found NB aeration achieved standard oxygen transfer efficiencies (SOTE) up to ~60-70% (roughly double conventional fine-bubble aeration).
Field and pilot trials have shown promising results in controlling algal blooms, reducing odors, and stimulating aerobic microbial activity. Compared to fountains or diffused-air aerators, nanobubbles remain suspended for weeks and can deliver up to ~85-90% of dissolved oxygen before rising. They also generate reactive oxygen species (ROS) when collapsed (especially if ozone is infused), further degrading cyanotoxins, bacteria and organics. Nanobubbles can offer a sustainable, chemical-free tool to sustain high DO, oxidize toxins, break down organic muck, and suppress algae, potentially reducing long-term maintenance and chemical treatments.
Technology Overview
Nanobubbles are typically defined as gas bubbles <1,000 nm in diameter. These tiny bubbles exhibit unusually high internal pressure and charge, allowing them to remain suspended for days or weeks rather than rapidly rising and popping like macroscopic bubbles. The zeta potential of NB surfaces is often strongly negative (e.g. –15 mV to –30 mV), which attracts positively-charged particles (nutrients, metal ions, cyanotoxins). Their large total surface area (order‑of‑magnitude larger per gas volume than conventional bubbles) greatly enhances gas–liquid mass transfer. In air/oxygen NBs, this yields much higher dissolved oxygen per unit gas supplied.
Physical–chemical properties: Nanokriti nanobubble generators produce nanobubbles of diameters range roughly 100–180 nm with concentration of ~1×10^8 nb/mL after aeration. Bulk NBs have densities close to water and negligible buoyancy, so they stay in solution. They act “like colloidal particles”. The bubbles’ surfaces concentrate gas–liquid interfaces and carry considerable internal gas pressure, which can solubilize more O₂ per bubble. Moreover, when NBs collapse (e.g. by coalescing or under shear), the rapid pressure release can produce ROS such as hydroxyl radicals.
In summary, nanobubbles combine high gas transfer efficiency with long residence time and surface reactivity, distinguishing them from traditional microbubbles or diffused aeration.
Mechanisms of Action
Nanobubbles affect lake water and biota via several interlinked mechanisms:
- Enhanced Oxygen Transfer: By virtue of their small size and high interfacial area, NBs dramatically improve O₂ dissolution. Unlike large bubbles that promptly float to the surface, nanobubbles deliver gas deep into the water column. Studies and analysis reports NB systems can achieve ~80–90% oxygen transfer efficiency (versus 10–30% for coarse diffusers). In practice, NB injection has been observed to raise DO uniformly, including hypolimnetic layers.
- Sustained Aeration / Mixing: Because NBs lack buoyancy, they linger and provide persistent circulation. Nanobubbles effectively stir the water from a static generator: they induce micro-currents and even out stratification.
- Oxidation & ROS Production: When certain NBs collapse, especially those containing reactive gases (O₃ or even pressurized O₂), they can generate hydroxyl radicals (•OH) and other reactive oxygen species. These ROS are potent oxidants: they can break down organic pollutants, weaken algal cells, and kill pathogens. For instance, Nanokriti’s Real world installations in Punjab’s community ponds showed the degradation in E. coli and fecal coliforms.
- Algae and Phytoplankton Effects: Nanobubbles can suppress or control algal blooms via multiple pathways. First, they raise DO and ORP, shifting conditions to favor aerobic microbes over cyanobacteria. Higher DO can oxidize nutrients (e.g. Fe- or P-bound forms) and make environments less hospitable for anaerobic cyanobacteria. Second, the negative charge on NBs can attract positively-charged cell components or toxins, potentially neutralizing them. Third, ROS production (especially with ozone NBs) can physically damage algal cells.
- Microbial and Nutrient Cycling: By oxygenating sediments and water, NBs stimulate aerobic bacteria that naturally degrade organic matter (the “muck”) and consume nutrients.
- Flotation and Debris Uplift: Nanobubbles may also physically lift fine particulates and muck. Bulk bubbles (micro/nano scale) can attach to organic flocs, making them buoyant in a manner analogous to dissolved air flotation (DAF).
In summary, nanobubbles act through combined oxygenation, oxidation, and microbial stimulation. They transfer O₂ very efficiently and uniformly, produce ROS under certain conditions, and their charged surfaces interact with nutrients, pathogens and algae. These mechanisms can ameliorate hypoxia, degrade contaminants and suppress blooms better than equivalent traditional aeration.
Applications and Use Cases in Lakes and Ponds
Aeration and Hypoxia Remediation: By injecting pure oxygen or air as nanobubbles, operators can raise DO throughout a waterbody. This is useful in eutrophic or stratified lakes that experience deep-water anoxia. Unlike surface fountains or bottom diffusers (which often fail to oxygenate deep or shallow systems), NB units infuse O₂ at all depths. The waterbody then remains oxygen-rich long after pumping stops.

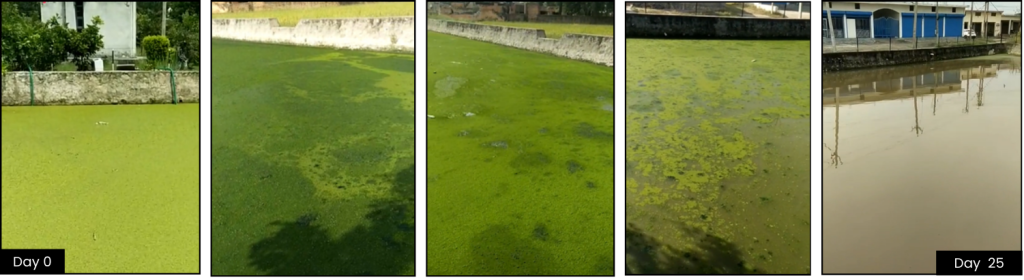

Algal Bloom Control (HAB/HABS): Nanobubble systems are marketed for Harmful Algal Bloom (HAB) mitigation. By continuously elevating DO/ORP and generating ROS, they create an environment hostile to cyanobacteria. NBs also aid natural food webs: by boosting zooplankton via better DO, they increase grazing on algae.
Odor Reduction: Bad smells in lakes usually come from hydrogen sulfide and other reduced compounds in anoxic sediments. Nanobubbles (especially ozone-infused) oxidize these compounds. Downstream of NB treatment, complaints of fetid smells often vanish. Likewise, NB-driven oxygenation can prevent the production of new odors by curbing anaerobic muck decay.
Nutrient Cycling and Phosphorus Control: By aerating bottom sediments, NBs can slow internal phosphorus loading. Under high oxygen, iron-bound P stays locked in sediments and biologically driven P-uptake increases.
Muck/Sludge Management: Organic sediment (“muck”) at the bottom is a chronic problem. Nanobubble oxygenation “bio-dredges” this material by feeding the aerobic microbes that decompose it. The sediment becomes more consolidated and less odorous.
Fish and Aquatic Life Health: The primary benefit of NB systems for aquaculture or fisheries is higher DO. Fish tolerate and grow better under well-oxygenated, well-mixed conditions. NB installations are used to improve water quality in fish ponds and lake fisheries, reducing stress and mortality.
Conclusion
Nanobubble technology offers a highly efficient methodology for elevating dissolved oxygen levels, fostering aerobic microbial metabolism, and substantially augmenting general water quality within lentic ecosystems. Due to their expansive gas–liquid interfacial surface area and extended residence time, these microscopic bubbles optimize oxygen mass transfer; furthermore, the infusion of oxygen or ozone NBs facilitates robust oxidation, pathogen mitigation, and the suppression of algal proliferation.
In the context of lake and pond remediation, nanobubbles are most effectively deployed as a primary component of a tailored aquatic management framework. Success is typically measured through critical metrics such as DO, ORP, nutrient concentrations, and organic sediment load. When supported by precise system engineering and rigorous monitoring, NB aeration serves as a powerful, sustainable tool for mitigating water quality degradation and achieving long-term ecological restoration.
References
- Nirmalkar, N., Pacek, A. W., & Barigou, M. (2018). On the existence and stability of bulk nanobubbles. Langmuir, 34(37), 10964–10973. doi:10.1021/acs.langmuir.8b01163.
- Nirmalkar, N., Pacek, A. W., & Barigou, M. (2018). Interpreting the interfacial and colloidal stability of bulk nanobubbles. Soft Matter, 14(47), 9643–9656. doi:10.1039/C8SM01949E.
- Jia, M., Farid, M. U., Kharraz, J. A., Kumar, N. M., Chopra, S. S., Jang, A., Chew, J., Khanal, S. K., Chen, G., & An, A. K. (2023). Nanobubbles in water and wastewater treatment systems: Small bubbles making a big difference. Water Research, 245, 120613. doi:10.1016/j.watres.2023.120613.
- Yaparatne, S., Doherty, Z. E., Magdaleno, A. L., Matula, E. E., MacRae, J. D., Garcia-Segura, S., & Apul, O. G. (2022). Effect of air nanobubbles on oxygen transfer, oxygen uptake, and diversity of aerobic microbial consortium in activated sludge reactors. Bioresource Technology, 351, 127090. doi:10.1016/j.biortech.2022.127090.
- Stanislawczyk, K., Braig IV, E. C., Laughinghouse IV, H. D., Raymond, H. A., Syed, H. E., Fuchs, J. D., Weavers, L. K., & Chaffin, J. D. (2024). Effectiveness of ozone nanobubble treatments on high biomass cyanobacterial blooms: A mesocosm experiment and field trial. Journal of Environmental Management, 372, 123406. doi:10.1016/j.jenvman.2024.123406.
- Hupfer, M., & Lewandowski, J. (2008). Oxygen controls the phosphorus release from lake sediments – a long-lasting paradigm in limnology. International Review of Hydrobiology, 93(4–5), 415–432. doi:10.1002/iroh.200711054.
- Gohari, N., Dehrazma, B., Mirzaii, M., Sagharvani, S. F., & Fazli, M. (2024). Effect of ozone micronano bubbles on the removal of infectious pathogens in contaminated water: Escherichia coli, Pseudomonas aeruginosa, Staphylococcus aureus, and Enterococcus faecalis. Journal of Environmental Engineering, 150(3). doi:10.1061/JOEEDU.EEENG-7481.
